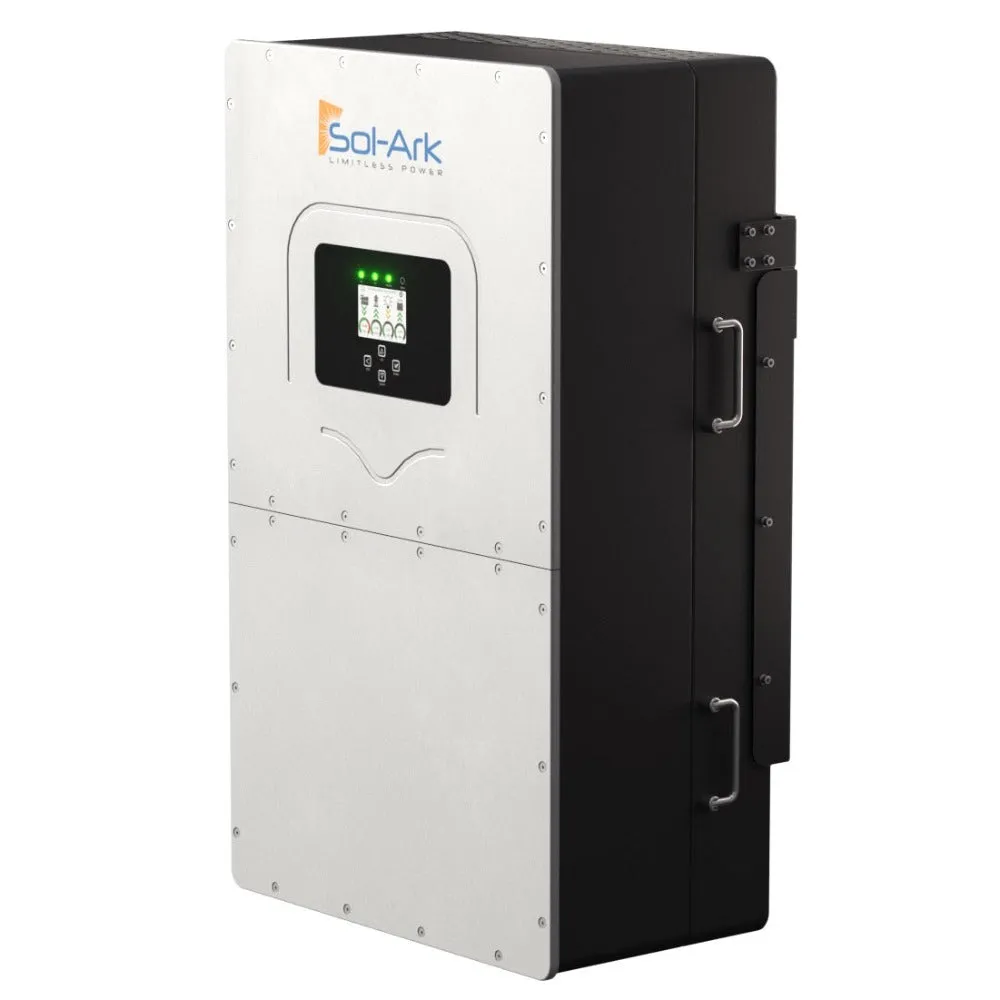

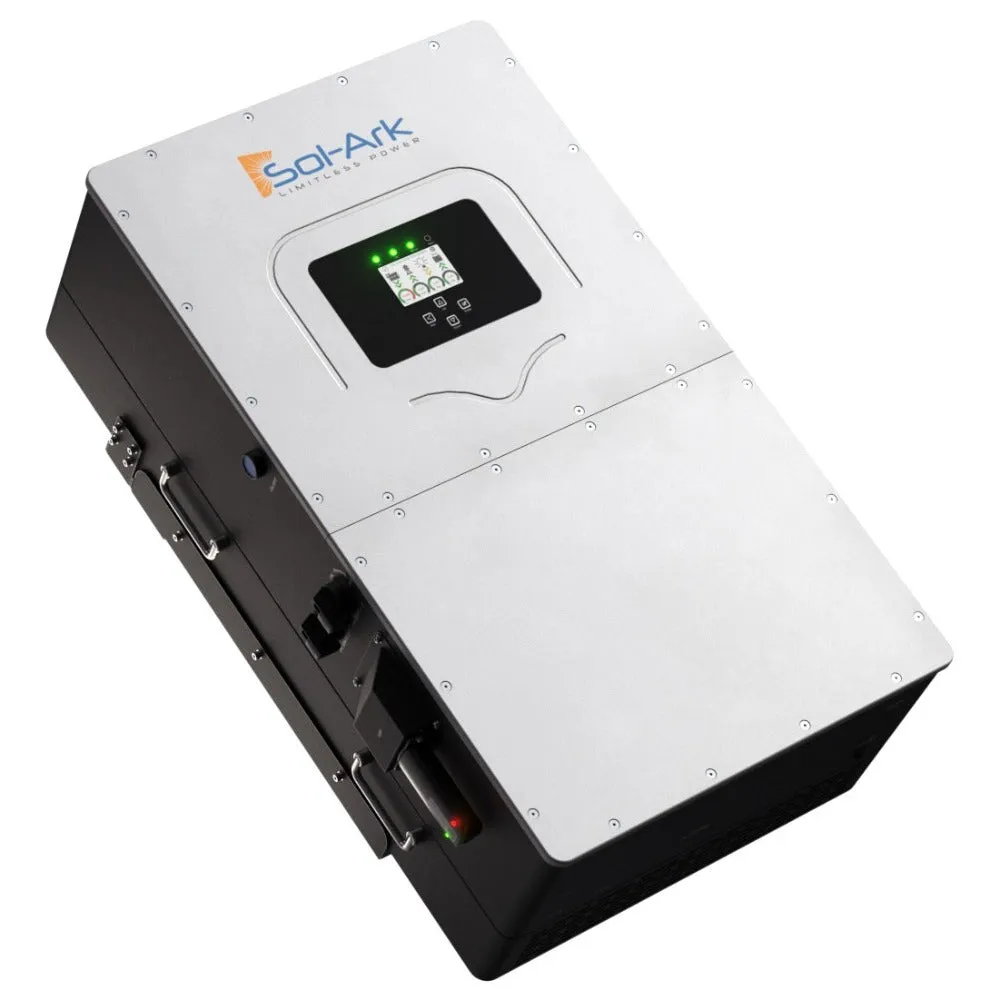

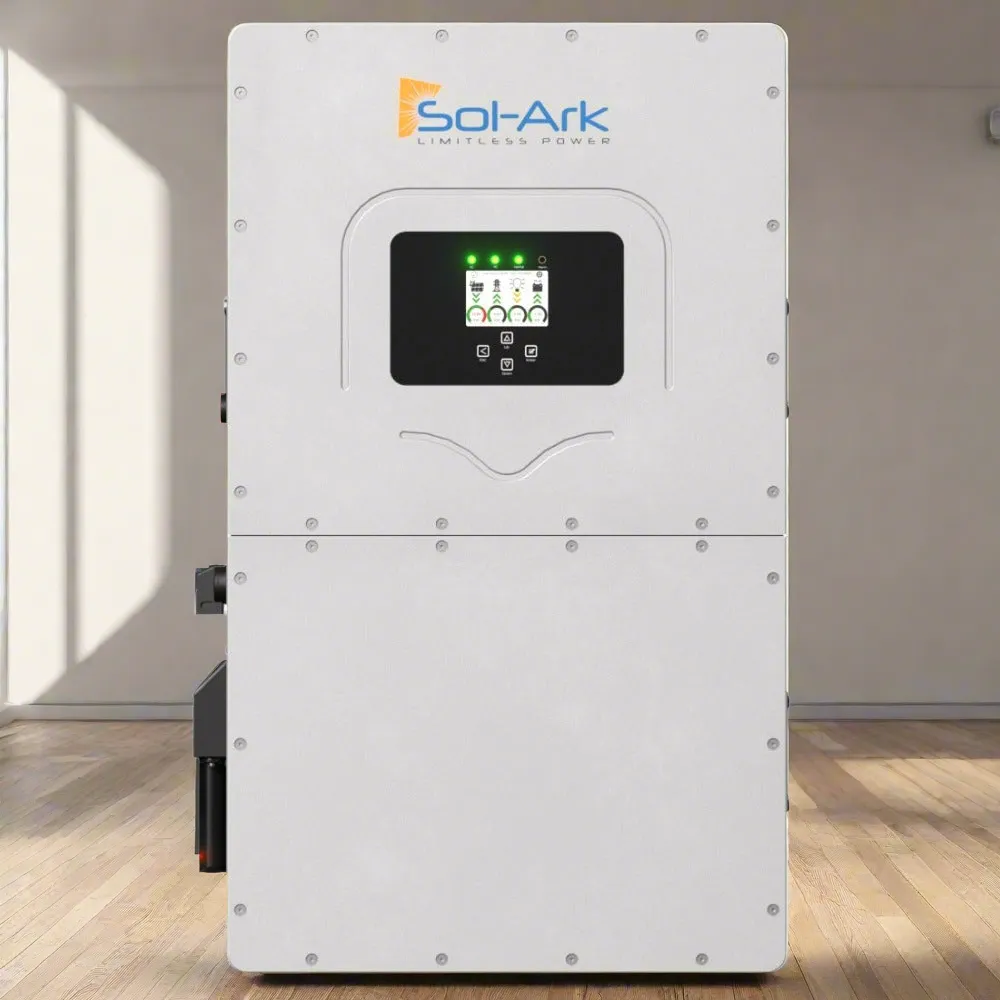

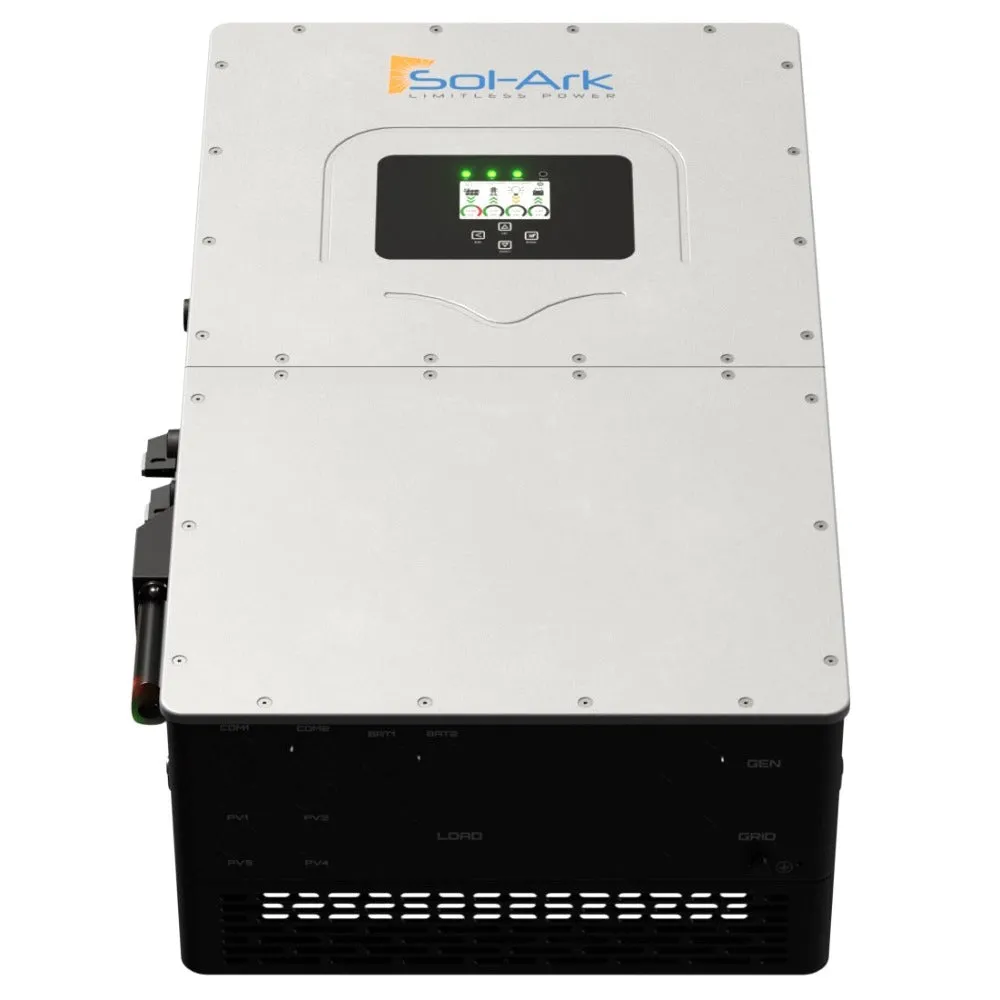

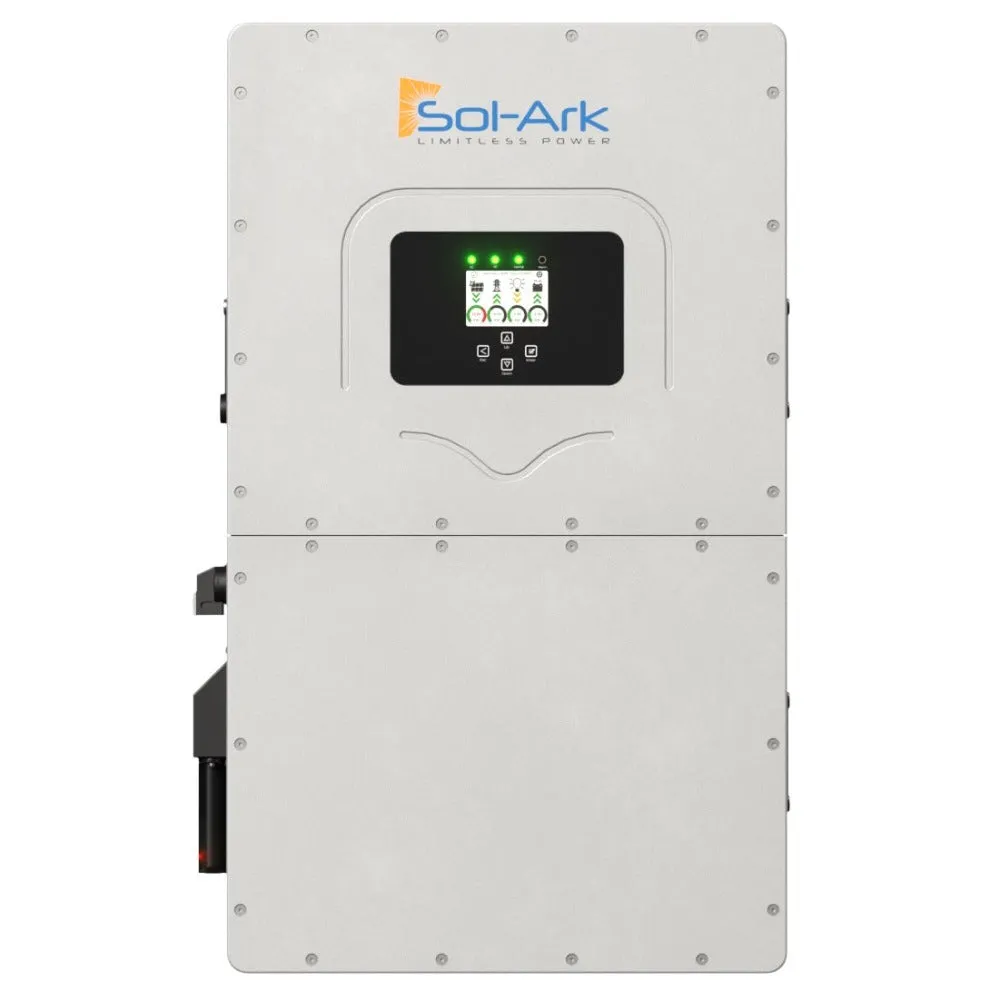

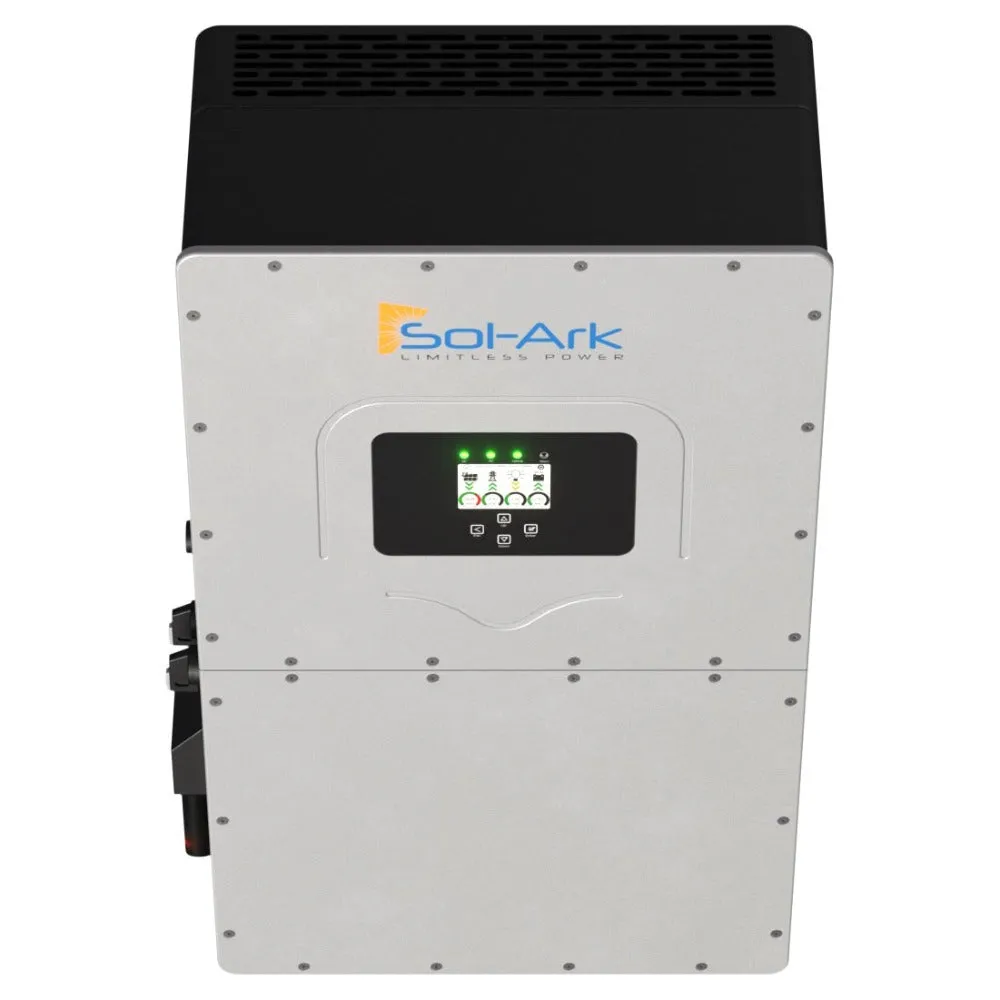

Name: Sol-Ark 30K 3-Phase Hybrid Solar Inverter | 30K-3P-208V | 10 Year Warranty
SKU: 946069

SOL-ARK 30K-3P Hybrid Inverter Overview

Introducing the Sol-Ark 30K All-In-One Hybrid, a highly robust and efficient solar inverter that seamlessly integrates solar power, storage, and generator power for residential, commercial, and industrial applications. Equipped with cutting-edge technology, the Sol-Ark 30K is a reliable solution that offers a range of features.

SOL-ARK 30K-3P Hybrid Inverter Features & Benefits

Easy Install

The Sol-Ark INVERTER comes with everything you need to install it. Nicely packaged for added efficiency.

Fleet Management

With Sol-Ark’s remote access features and app you are never out of touch to quickly repair or adjust any system without being on site.

Battery Agnostic

Sol-Ark inverters also do not have expensive battery restrictions like other solar inverters do. With our 30k and 60k high voltage systems, closed-loop communications with the batteries are required.

SOL-ARK 30K-3P Hybrid Inverter Specifications

Input Data (PV)

Max. Allowed PV Power (STC): 39,000W
MPPT Voltage Range: 150 - 500V
Startup Voltage: 180V
Max. Input Voltage: 550V
Max. Operating Input Current per MPPT: 36A
Max. Short Circuit Current per MPPT: 55A
No. of MPP Trackers: 4
No. of PV Strings per MPPT: 2
Max. AC Coupled Input: 30,000W

Output Data (AC)

Nominal AC Voltage (3Φ): 120/208V
Grid Frequency: 50 / 60Hz
Real Power, max continuous (3Φ): 30,000W
Max. Output Current: 83.4A
Peak Apparent Power (10s, off-grid, 3Φ): 45,000VA
Max. Grid Passthrough Current (10min): 200A
Continuous Grid Passthrough Current: 180A
Power Factor Output Range: /- 0.8 adjustable
Backup Transfer Time: 5ms (adjustable)
CEC Efficiency: 96.5%
Max Efficiency: 97.5%
Design (DC to AC): Transformerless DC
Stackable: Up to 10 in parallel

Battery Input Data (DC)

Battery Technologies: Lithium iron phosphate
No. of Battery Inputs: 2
Battery Input Terminal Rating: 50A
Nominal DC Voltage: ≥300V
Operating Voltage Range: 160 - 500V
Capacity: 50 — 9900Ah
Max. Battery Charge / Discharge Current: 100A (50A per input)
Charging Controller Type: 3-Stage with Equalization
Grid to Battery Charging Efficiency: 96.0%
Automatic Generator Start (AGS): 2 Wire Start - Integrated
BMS Communication: CANBus & RS485 MODBUS

General Data

Dimensions (H x W x D): 894 x 528 x 295 mm (35.2 x 20.8 x 11.6 in)
Weight: 80 Kg / 176 lb.
Enclosure: IP65 / NEMA 3R
Ambient Temperature: -25~55°C, > 45°C Derating
Noise: < 30 dB @ 25°C (77°F)
Idle consumption: - No Load 60W
Communication and Monitoring: Wi-Fi & LAN Hardware Included
Standard Warranty: 10 Years (15 Years)

Protection and Certifications

Certifications and Listings: UL 1741-2021 (UL1741SB), CSA C22.2 No 107.1-16,
IEEE 1547-2018 & 1547a-2020 & 1547.1-2020 (SRD V2.0), UL 1741 CRD-PCS, UL1699B, CEC, SGIP 4
PV DC Disconnect Switch — NEC 240.15: Integrated
Ground Fault Detection — NEC 690.5: Integrated
PV Rapid Shutdown Control — NEC 690.12: Integrated
PV Arc Fault Detection — NEC 690.11: Integrated
PV Input Lightning Protection: Integrated
PV String Input Reverse Polarity Protection: Integrated
Surge Protection: DC Type II / AC Type II
