Name: Rich Solar - All-in-One Energy Storage System
SKU: 920732

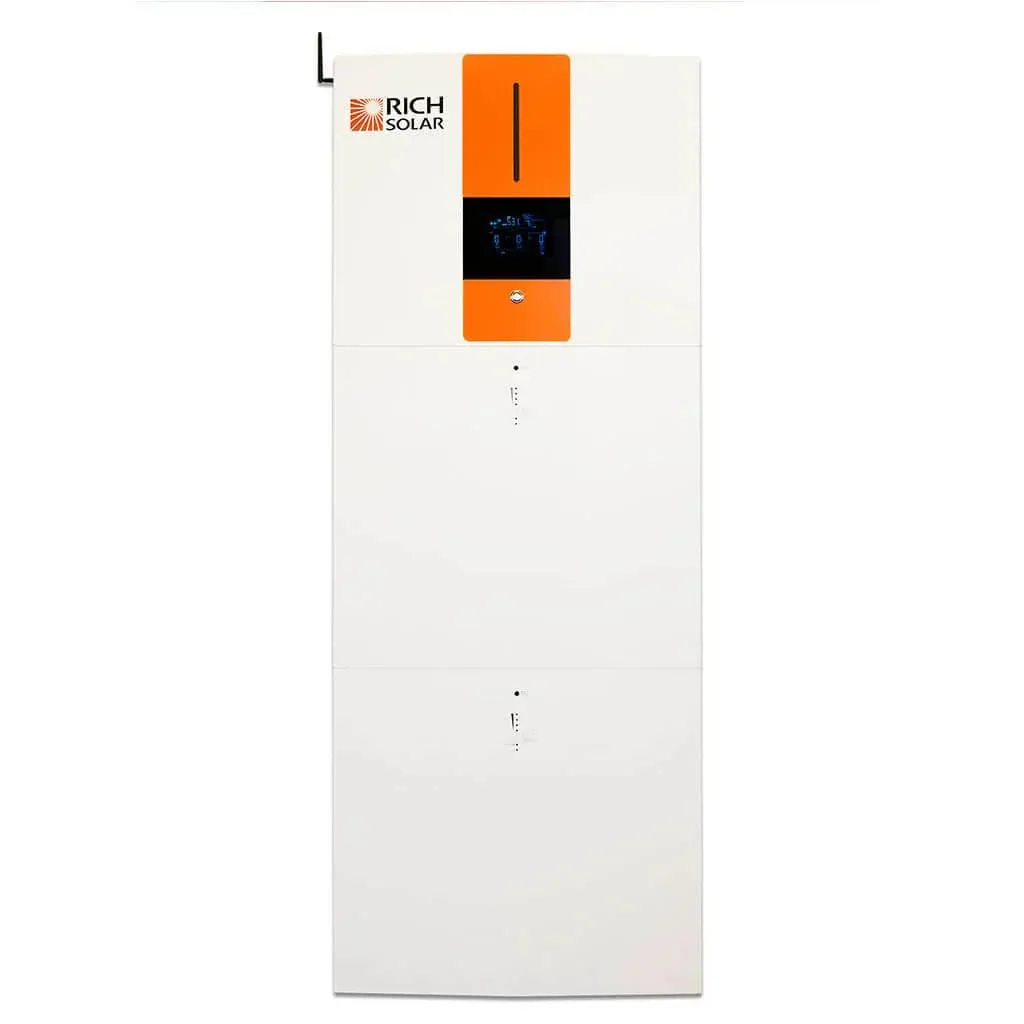

Introducing the RICH SOLAR
All-in-One Energy Storage System

The RICH SOLAR All-in-One Energy Storage System is a powerful and efficient solar energy system designed to provide clean and reliable electricity. This innovative system integrates all the components required for solar power generation into a single, compact unit, including an inverter, batteries, and a charge controller.

🗹 Pure sine wave output

🗹 Off-Grid application

🗹 Programmable supply priority for PV, Battery, or Grid

🗹 User-adjustable battery charging current

🗹 Battery independent design

🗹 Multiple communication for USB, RS232, SNMP, Modbus, GPRS and Wi-Fi

🗹 Monitoring APP (Android and iOS) for real-time status display and parameter control

🗹 Built-in 2 MPPT trackers and AC/Solar charger up to 120A

🗹 Compatible with utility and generator

🗹 Scalable Li-Ion battery expansion

The compact design of an All-in-One Energy Storage System makes it an attractive option for those with limited space, or for those who want a more discreet installation. It can also be easier to install and maintain compared to larger energy storage systems, which may require more extensive wiring and infrastructure.

Tech Specs

Specifications

BATTERY INFO

Model:

RS-A10

Maximum PV Input Power:

8000W

Rated Output Power:

6500W

Maximum Charging Power:

6500W

PV INPUT (DC)

MPPT Range @ Operating Voltage:

90 ~ 230 VDC

Maximum PV Array Open Circuit Voltage:

250 VDC/p>

Maximum Solar Charge Current:

120A

Number of MPP Trackers / Maximum Input Current:

2 / 2 x 18 A

AC INPUT

Acceptable Input Voltage Range:

90-140 VAC (For Computers)
80-140 VAC (For Home Appliances)

Maximum AC Input Current:

60A

BATTERY MODE OUTPUT

Nominal Output Voltage:

120 VAC

Maximum Conversion Efficiency (DC/AC):

93%

BATTERY

Nominal DC Voltage:

48 VDC

Maximum Charging Current:

120 A

Dimension:

(D x W x H): 8.4" x 24.4" x 19.7"

Net Weight:

99 lb

Capacity:

5120Wh

Nominal Voltage:

51.2VDC

Full Charge Voltage(FC):

56V

Full Discharge Voltage(FD):

42V

Typical Capacity:

100 Ah

Max Continuous Discharging Current:

120A

Max Discharging Current:

192A at 1 min

Protection:

BMS, Breaker

Float Charge Voltage:

52.5V

Charge Current:

20A (0.2C)

Maximum Charge current:

50A (0.5C)

Standard Charge method:

0.2C CC (Constant current) charge to FC, CV (Constant voltage FC) charge till charge current declines to <0.05C

Inner Resistance:

=20m ohm

ALL IN ONE SYSTEM PHYSICAL

System Dimension (D X W X H):

19.7" x 26" x 49.2"

Net Weight:

287 lb

STANDARD

Compliance Safety:

IEC 62619, EN 61000-6-3, EN 61000-6-1, UKCA, UN38.3, UL 1741, CSA C22.2 No.107.1-16, FCC PART 15B
