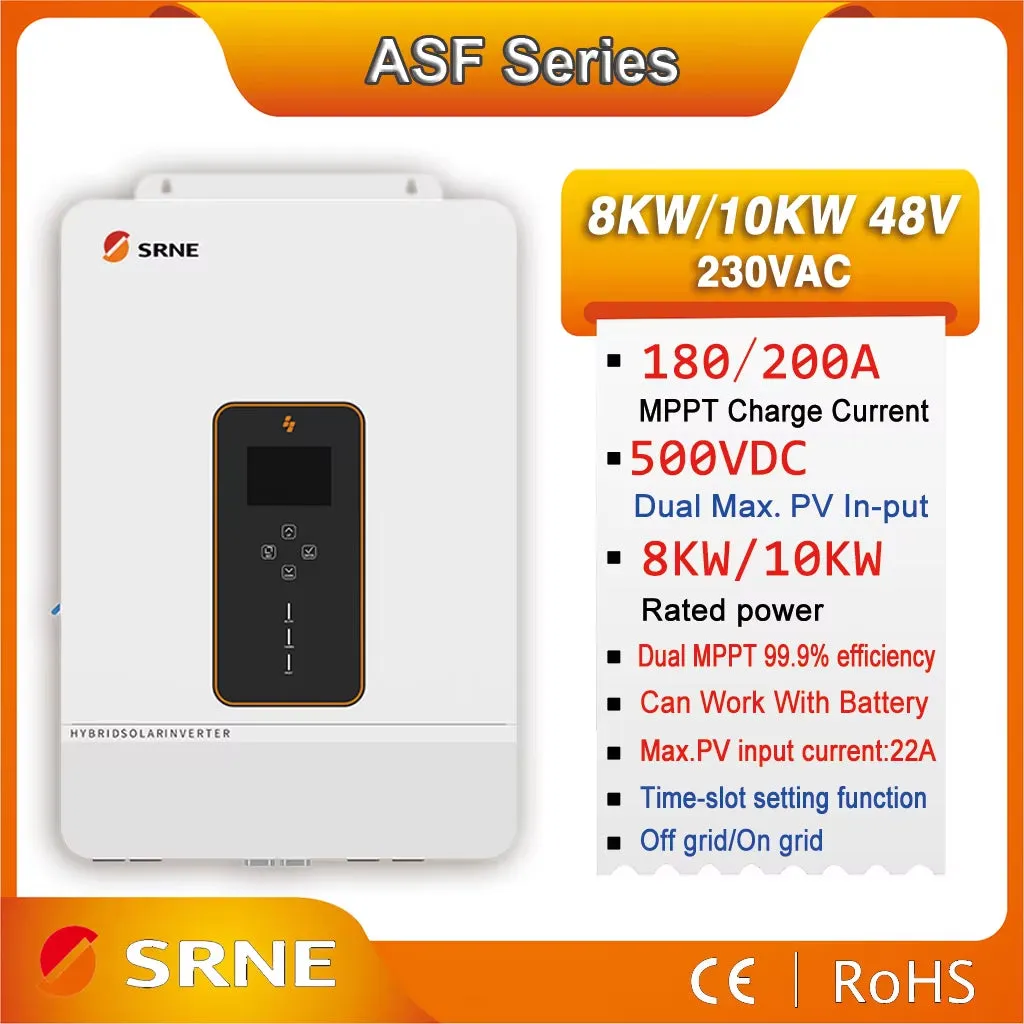

SRNE 8/10KW 48V To 230VAC Dual MPPT Max 22A Charge Current Max PV 500V Hybrid Solar Inverter time-slot

Note :

The battery capacity of the correct matching system is determined according to the specific usage requirements of the load and application scenarios, otherwise it will easily lead to insufficient battery capacity or excessive waste of power generation. For details, please refer to the manual recommendation or consult online customer service.

Introduction：

ASF series is a new type of solar energy storage inverter control inverter integrating solar energy storage & utility

charging and energy storage, AC sine wave output. It adopts DSP control and features high response speed, reliability, and industrial standard through an advanced control algorithm.

Features:

• Supports lead acid battery and li-ion battery connections.

• With a dual activation function when the li-ion battery is dormant; either mains/photovoltaic power supply

access can trigger the activation of the li-ion battery.

• Single-phase pure sine wave output.

• It has charging and discharging time-slot setting function.

• Supports two solar inputs and simultaneous tracking of two solar maximum power charging/carrying capacity functions.

• Dual MPPT with 99.9% efficiency and maximum 22A current in a single circuit, perfectly adapted to high power modules.

• 4 charging modes are available: solar only, mains priority, solar priority, and mixed mains/PV charging.

• With the time-slot charging and discharging setting function, you can set the time period for cutting in/out of mains charging and switch the time period between battery discharging and mains bypass power supply mode.

• Energy saving mode function to reduce no-load energy losses.

• With two output modes of utility bypass and inverter output, with uninterrupted power supply function.

• LCD large screen dynamic flow diagram design, easy to understand the system data and operation status.

• 360° protection with complete short circuit protection, over current protection, over under voltage protection, overload protection, backfill protection, etc.

• Support CAN, USB, and RS485 communication.

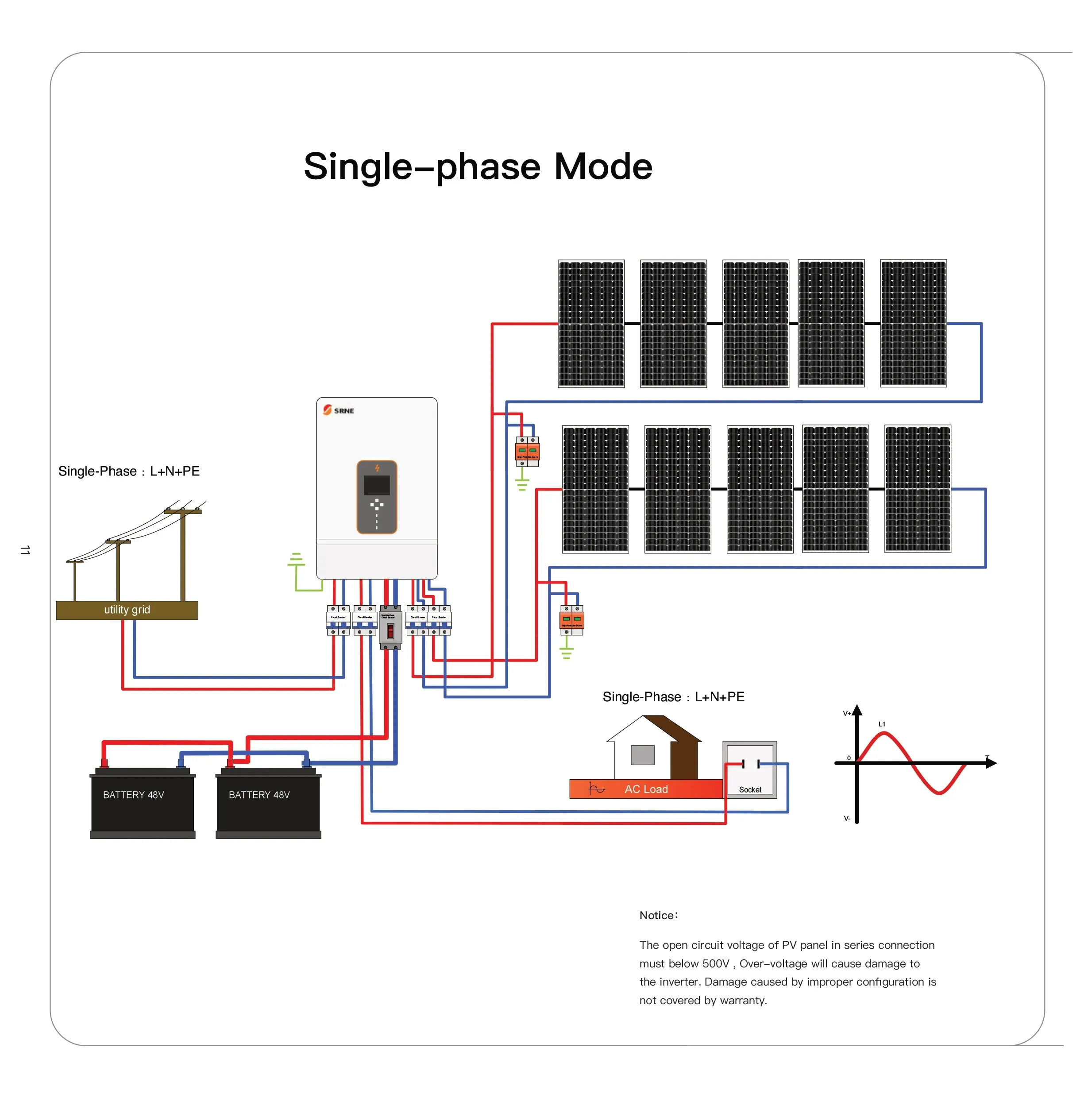

Overview：

Sepecification：

MODEL	ASF4880S180-H	ASF48100S200-H	Adjustable
INVERTER OUTPUT

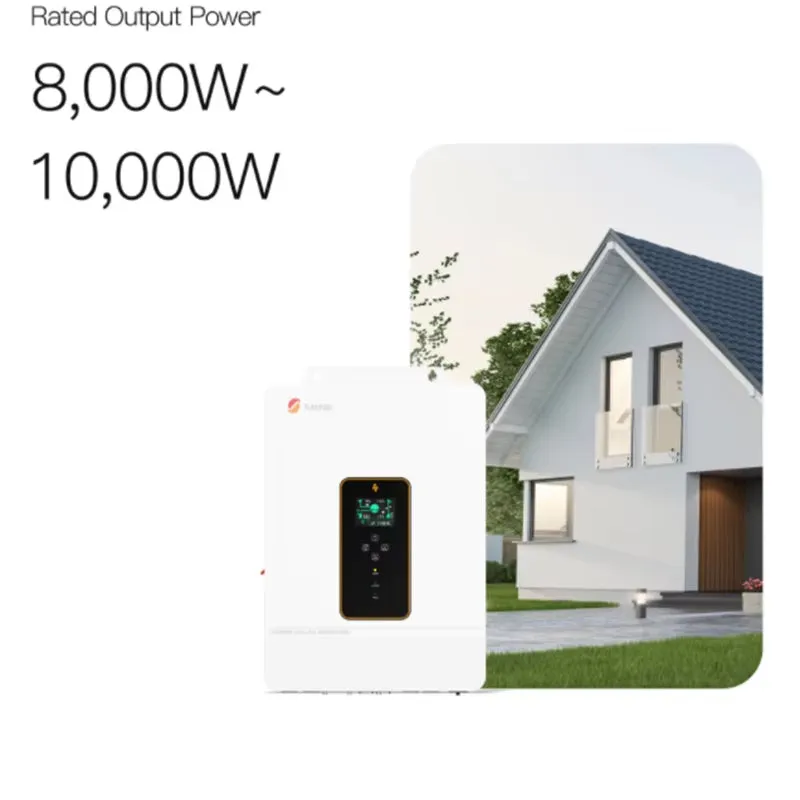

Rated Output Power	8,000W	10,000W
Max.Peak Power	16,000W	20,000W
Rated Output Voltage	230Vac(Single phase)	√
Load Capacity of Motors	5HP	6HP
Rated AC Frequency	50/60Hz	√
Waveform	Pure Sine Wave
Switch Time	10ms（typical）
Parallel capacity	/
BATTERY
Battery Type	Li-ion / Lead-Acid / User Defined	√
Rated Battery Voltage	48Vdc
Voltage Range	40-60Vdc	√
Max.MPPT Charging Current	200A	√
Max.Mains/Generator Charging Current	100A	120A	√
Max.Hybrid Charging Current	180A	200A	√
PV INPUT
Num. of MPP Trackers	2
Max.PV array power	11,000W
Max.input current	22/22A
Max.Voltage of Open Circuit	500Vdc
MPPT Voltage Range	125-425Vdc
MAINS / GENERATOR INPUT
Input Voltage Range	90-275Vac
Frequency Range	50/60Hz
Bypass Overload Current	63A
EFFICIENCY
MPPT Tracking Efficiency	99.90%
Max. Battery Inverter Efficiency	92%
GENERAL

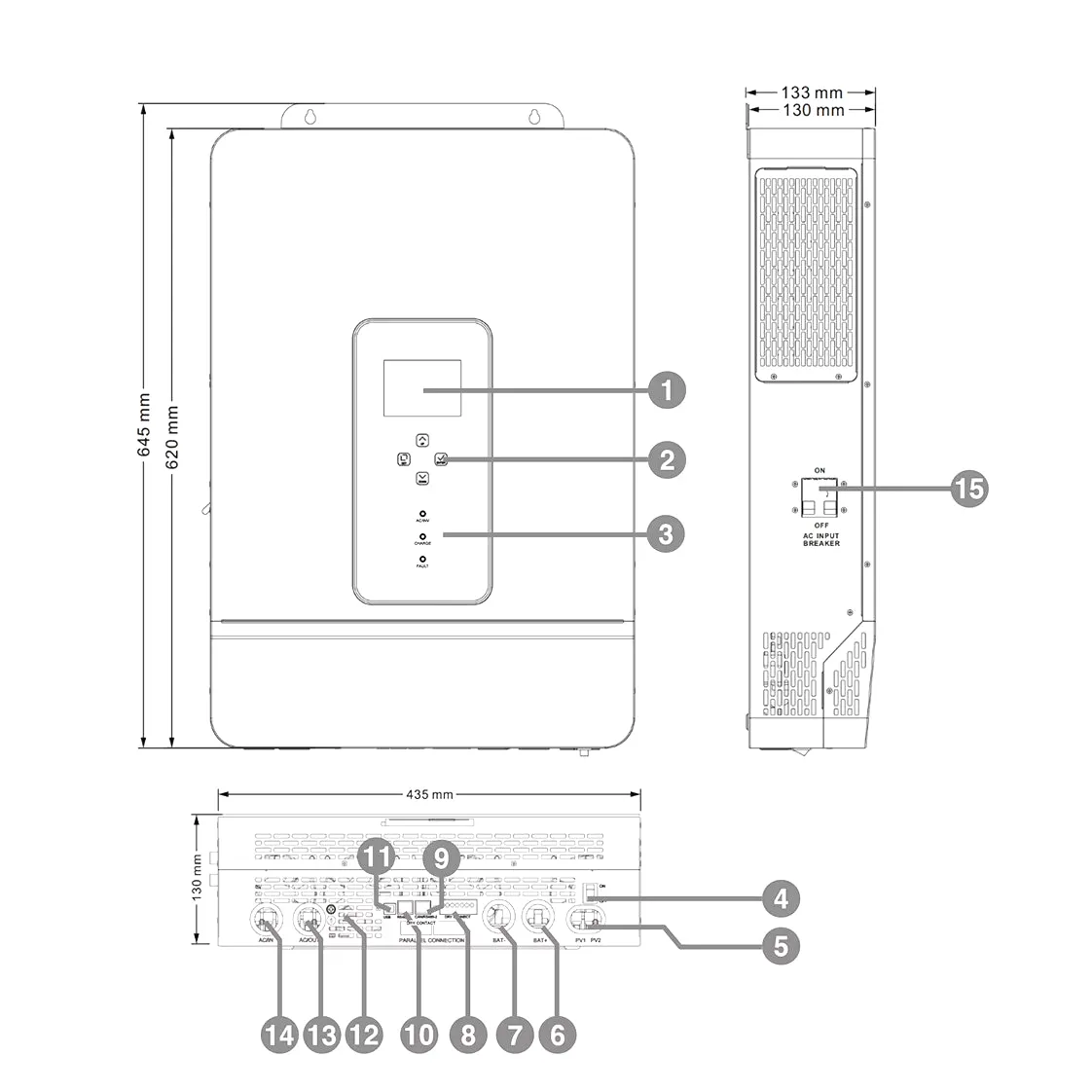

Dimensions	620*435*130mm（2*1.4*0.4ft）
Weight	20kg（44lb）	21kg（46.3lb）
Protection Degree	IP20，Indoor Only
Operating Temperature Range	-15~55℃,>45℃ derated（5~131℉，>113℉ derated）
Noise	<60dB
Cooling Method	Internal Fan
Warranty	2 Years
COMMUNICATION
Embedded Interfaces	RS485 / CAN / USB / Dry contact	√
External Modules（Optional）	Wi-Fi / GPRS	√
CERTIFICATION
Safety	IEC62109-1, IEC62109-2,UL1741
EMC	EN61000-6-1, EN61000-6-3, FCC 15 class B
RoHS	Yes

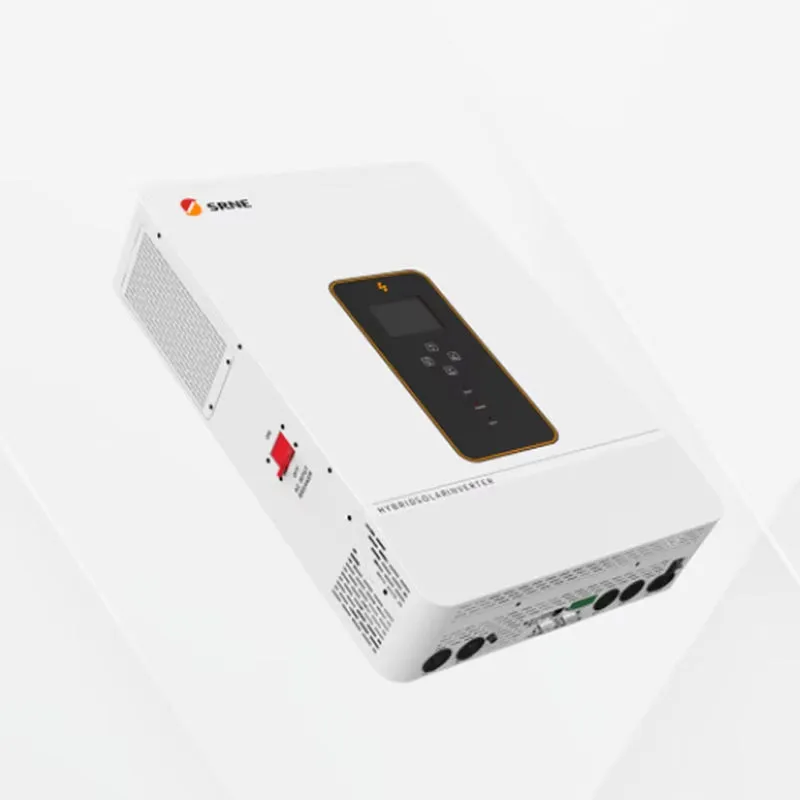

Item Pictures：
