FEATURES

• Support multiple input & output - Split phase 208/240VAC or single
  phase 230VAC.

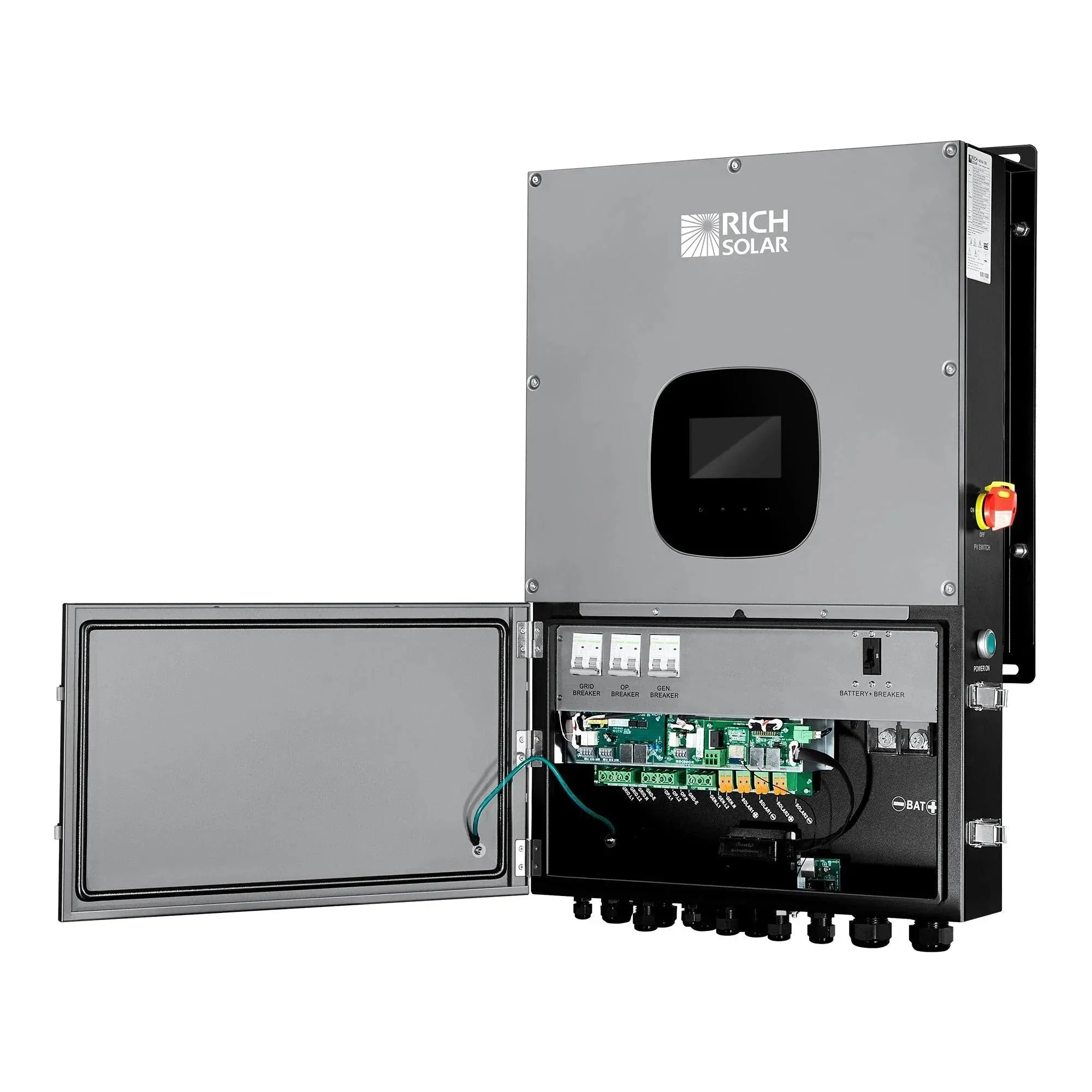

• Door-type cable compartment.
• Built-in 300A DC breaker and 60A AC breaker.
• Built-in AC coupled function.
• Built-in Wi-Fi for mobile monitoring (APP is available).
• Accepts second input power source, generator input compatible.
• Built-in arc fault detection (AFD) and rapid shutdown (RSD).
• External CT sensor to guarantee 100% self-consumption.
• Built-in communication port for BMS (RS485).
• User-adjustable charging current and voltage.
• Parallel operation up to 6 units.

SPECIFICATIONS

Maximum PV Input Power: 12000W
Parallel Capability: 6 units

INPUT

• Maximum PV input Power: 12000W
• Maximum DC Voltage: 600VDC
• Start-up Voltage/initial Feeding Voltage: 125VDC/160VDC
• MPP Voltage Range: 120VDC-550VDC
• Number of MPPT Trackers/Maximum Input Current: 2/18A

OUTPUT

• Rated Output Power: 10000VA/10000W
• Nominal Output Voltage: 120VAC(P-N)/208VAC(P-P)/240VAC(P-P)
• Output Voltage Range: 105.5-132VAC per phase
• Nominal Output Current: 41.5A per phase

BATTERY

• Battery DC Voltage Range: 40-62VDC / 48VDC
• Maximum Solar Charging Current: 200A
• Maximum AC Charging Current: 200A
• Maximum Charging Current: 200A

OPERATING ENVIRONMENT

• Operating Temperature Range: -25°C to 60°C(>45°C derating)
• Protection Degree: IP 65
• Communication Port: RS232, RS485, WI-FI, USB

PHYSICAL

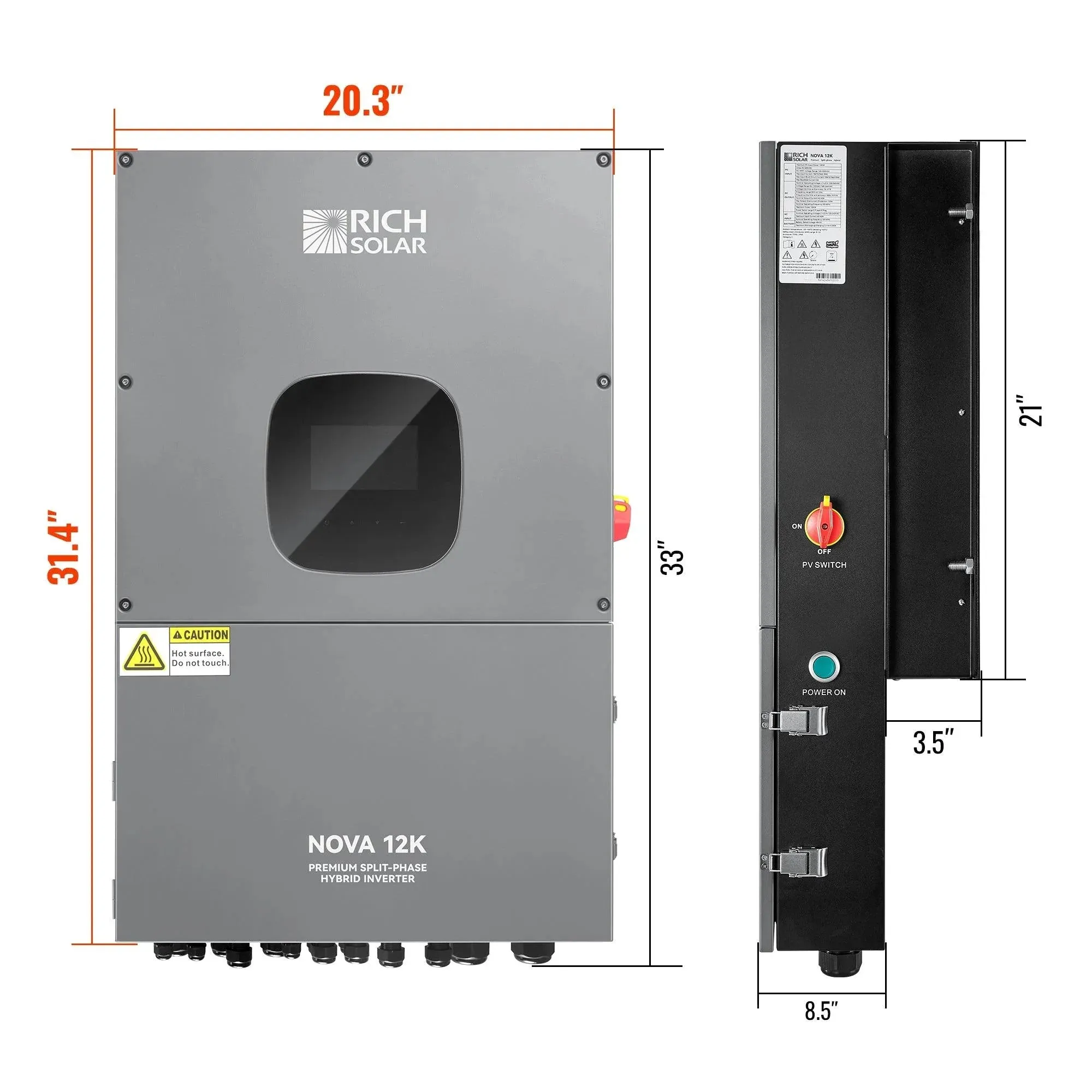

• Dimension (DxWxH): 8.5x20.3x28.1in / 215.5x515x715mm
• Net Weight: 99.2lb / 45kg

CERTIFICATE

• UL 1741SA, UL 1741SB, CSA 22.2.107.1, CEC
