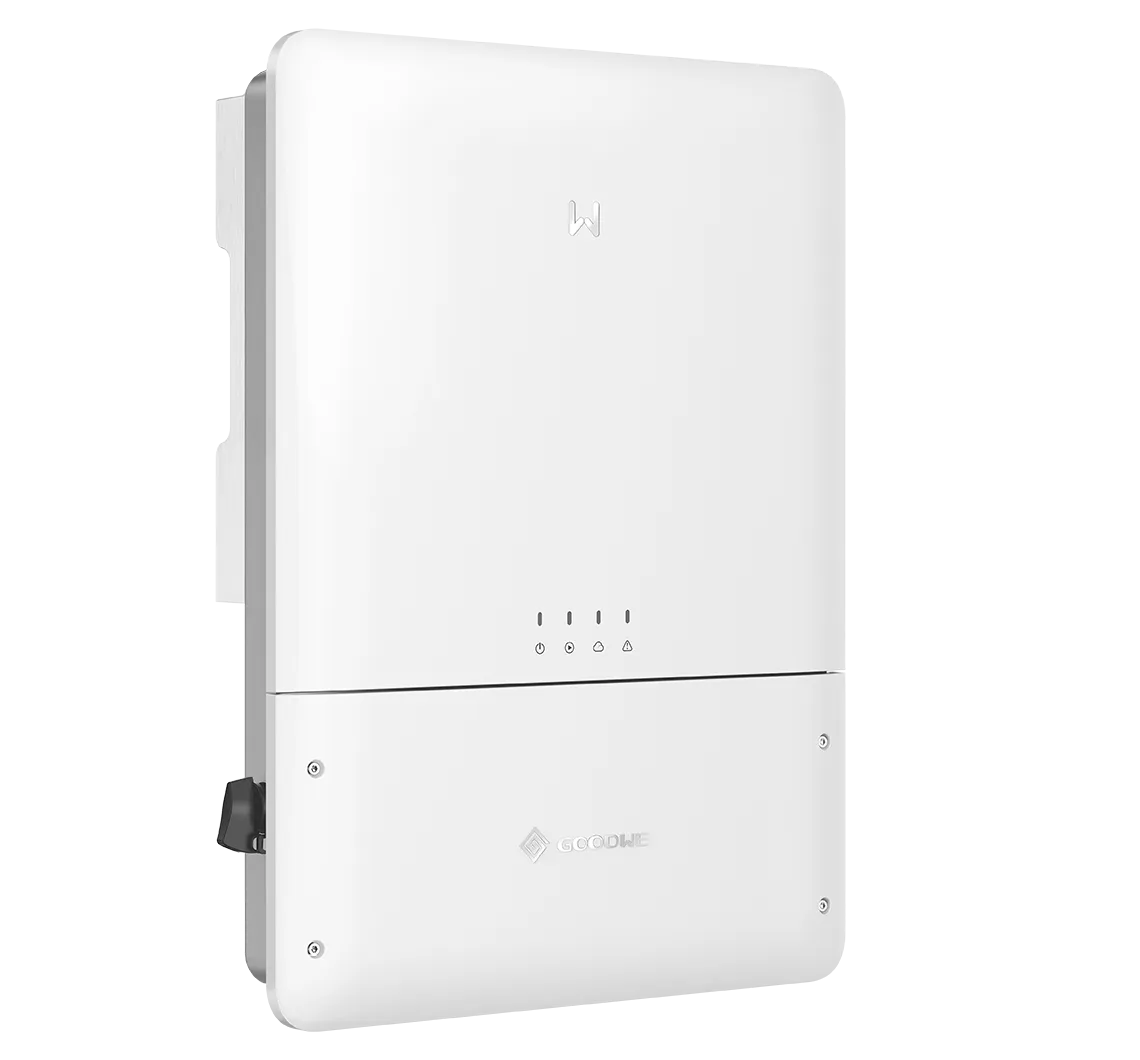

GoodWe 5.0 kW GW5000A-MS PV Inverter
Introducing the GoodWe 5.0 kW GW5000A-MS PV Inverter – a high-quality solution for converting solar energy into usable electricity. This PV inverter is designed to deliver outstanding performance and reliability, making it an excellent choice for residential and small-scale commercial solar installations.
- Efficient Energy Conversion: The GW5000A-MS inverter efficiently converts solar energy into electricity, maximizing your solar system's energy production.
- Reliable Performance: Built with high-quality components, the GoodWe inverter ensures reliable and long-term operation even in challenging conditions.
- User-Friendly Design: Featuring a user-friendly design, installation and operation are made easy for both professionals and homeowners.
Technology and Overview
The GoodWe 5.0 kW GW5000A-MS PV Inverter incorporates advanced technology to efficiently convert DC solar power into AC electricity. It is designed to provide optimal performance and reliability for your solar energy system.
Installation and Compatibility Overview
Installing the GW5000A-MS inverter is straightforward, and it is compatible with various solar systems and configurations. Whether you're setting up a residential rooftop system or a small commercial installation, this inverter offers versatility and ease of integration.
Benefits and Applications Overview
The GoodWe 5.0 kW GW5000A-MS PV Inverter offers numerous benefits, including efficient energy conversion and reliable performance. It is suitable for residential and small-scale commercial applications, contributing to cost savings and sustainability. With its user-friendly design, it simplifies the installation process and provides a seamless experience for both professionals and homeowners.
Product Specifications
| Specification | Details |
| MPN | GW5000A-MS |
| Max. Input Power (W) | 7500 |
| Max. Input Voltage (V)*1 | 600 |
| MPPT Operating Voltage Range (V) | 80 ~ 550 |
| Start-up Voltage (V) | 150 |
| Nominal Input Voltage (V) | 380 |
| Max. Input Current per MPPT (A) | 12.5 |
| Max. Short Circuit Current per MPPT (A) | 15.2 |
| Number of MPP Trackers | 2 |
| Number of Strings per MPPT | 1 |
| Nominal Apparent Power Output to Utility Grid (VA) | 5000 / 5000 |
| Max. Apparent Power Output to Utility Grid (VA) | 5000 |
| Nominal Output Voltage (V) | 208 / 240 |
| Output Voltage Range (V) | 211 ~ 264@240 / 183 ~ 229@208 |
| Nominal AC Grid Frequency (Hz) | 60 |
| Max. AC Current Output to Utility Grid (A) | 20.8 |
| Power Factor | ~1 (Adjustable from 0.8 leading to 0.8 lagging) |
| Max. Total Harmonic Distortion | <3% |
| Max. Efficiency | 0.976 |
| CEC Efficiency | 97.3%@240 / 97.0%@208 |
| MPPT Efficiency | 0.999 |
| PV Insulation Resistance Detection | Integrated |
| Residual Current Monitoring | Integrated |
| PV Reverse Polarity Protection | Integrated |
| Anti-islanding Protection | Integrated |
| AC Overcurrent Protection | Integrated |
| AC Overvoltage Protection | Integrated |
| AFCI | Integrated |
| Operating Temperature Range | -31°F ~ 140°F (-35°C ~ 60°C) |
| Relative Humidity | 0 ~ 95% |
| Max. Operating Altitude | 13123ft (4000m) |
| Cooling Method | Natural Convection |
| User Interface | LED, APP |
| Communication with Portal | WiFi, LAN (Optional) |
| Weight | 62.8lb (28.5kg) |
| Dimension (W × H × D) | 16.3 × 31.1 × 6.9 in (415 × 791 × 175 mm) |
| Topology | Non-isolated |
| Self-consumption at Night (W) | <20 |
| Ingress Protection Rating | Type 4X |
| Mounting Method | Wall Mounted |
| Grid Interconnection | UL1741 SA, California Rule 21, HECO Rule 14, IEEE 1547, IEEE 1547.1 |
| Safety Regulations | UL 1741, CSA 22.2 No. 107-01, UL 1998, UL1699B |
| Electromagnetic Compatibility | FCC part15 CLASS B |
