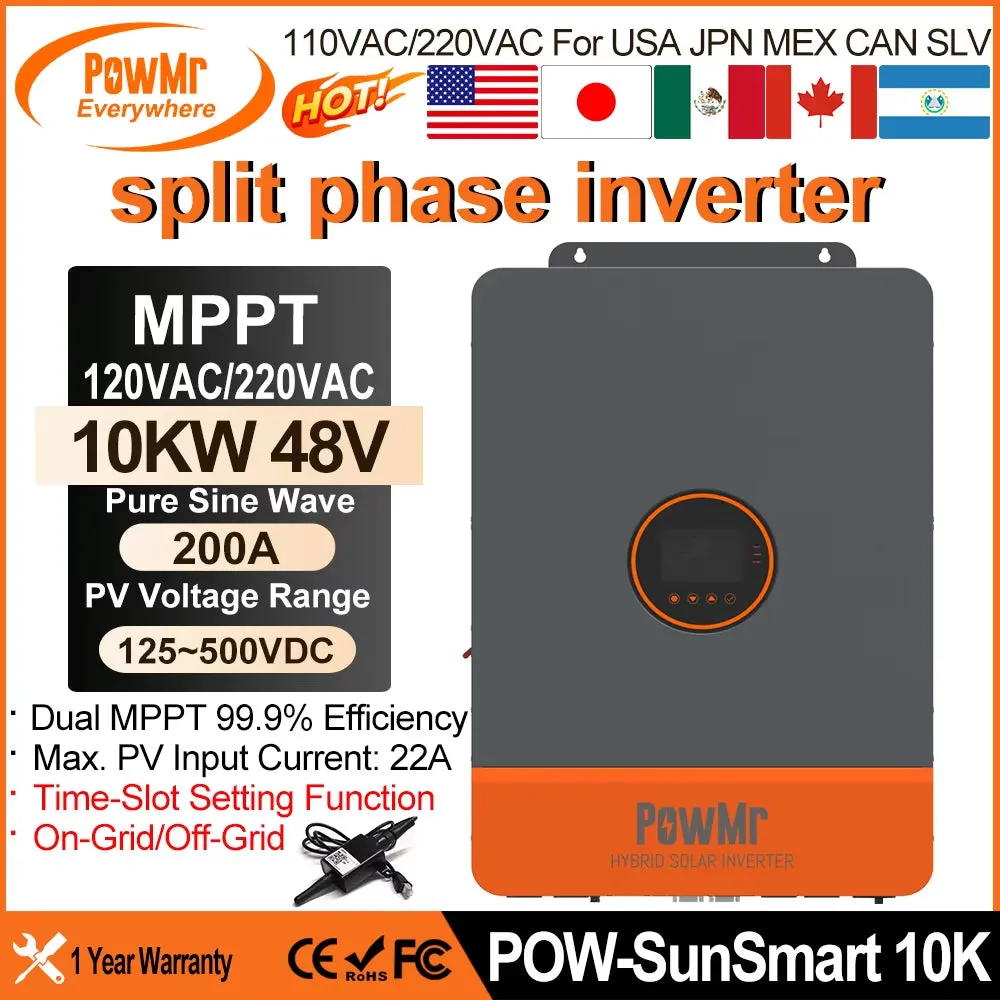

PowMr 10KW 48V Split Phase Inverter All in one Hybrid Solar Inversor 110/220VAC Output PV 500VDC With Dual MPPT 200A Tracker
Overview:
POW-SunSmart 10K is a new type of solar energy storage inverter control inverter integrating solar energy storage & utility charging and energy storage, AC sine wave output. It adopts DSP control and features high response speed, reliability, and industrial standard through an advanced control algorithm.
Feature:
⚫ Supports lead acid battery and li-ion battery connections.
⚫ With a dual activation function when the li-ion battery is dormant; either mains/photovoltaic power
supply access can trigger the activation of the li-ion battery.
⚫ Support split-phase and single-phase pure sine wave output.
⚫ Supports four different voltage levels of 100Vac, 105Vac, 110Vac, and 120Vac per phase.
⚫ Supports two solar inputs and simultaneous tracking of two solar maximum power charging/carrying capacity functions.
⚫ Dual MPPT with 99.9% efficiency and maximum 22A current in a single circuit, perfectly adapted to high power modules.

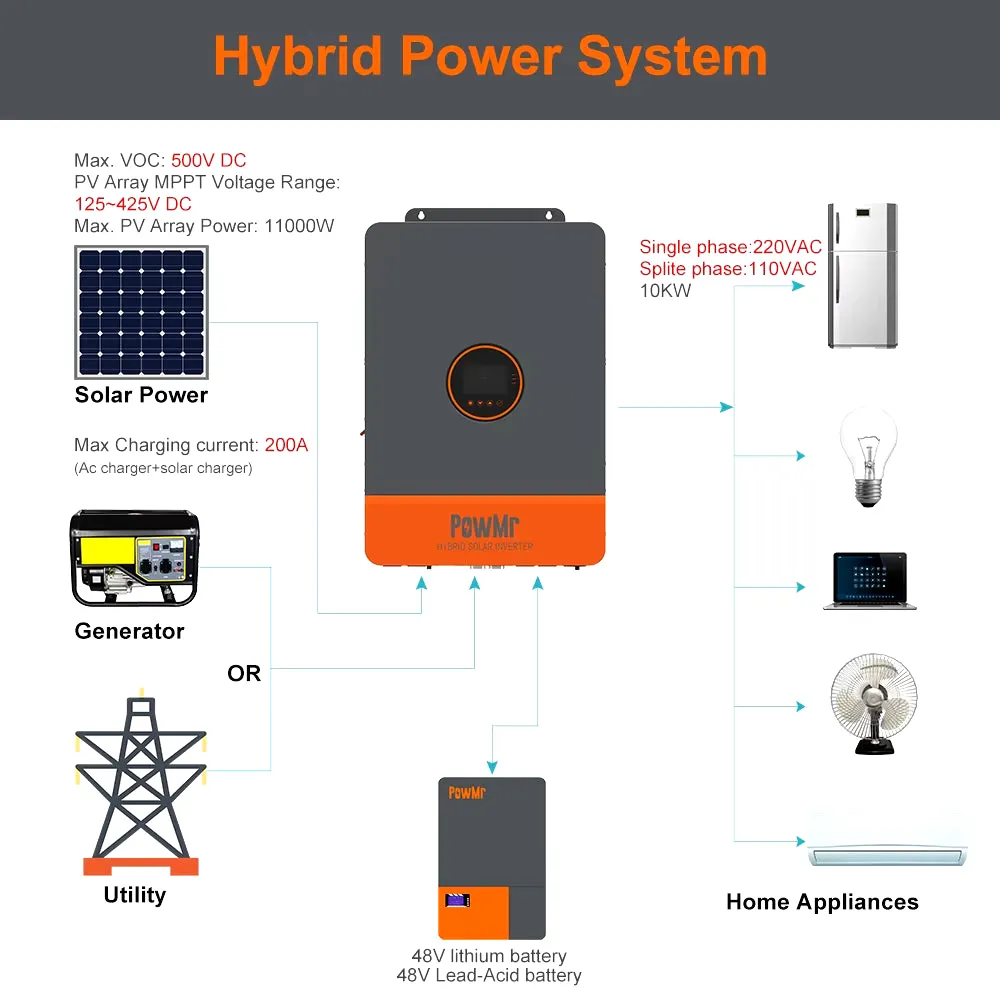

⚫ 4 charging modes are available: solar only, mains priority, solar priority, and mixed mains/PV charging.
⚫ With the time-slot charging and discharging setting function, you can set the time period for cutting in/out of mains charging and switch the time period between battery discharging and mains bypass power supply mode.
⚫ Energy saving mode function to reduce no-load energy losses.
⚫ With two output modes of utility bypass and inverter output, with uninterrupted power supply function.
⚫ LCD large screen dynamic flow diagram design, easy to understand the system data and operation status.

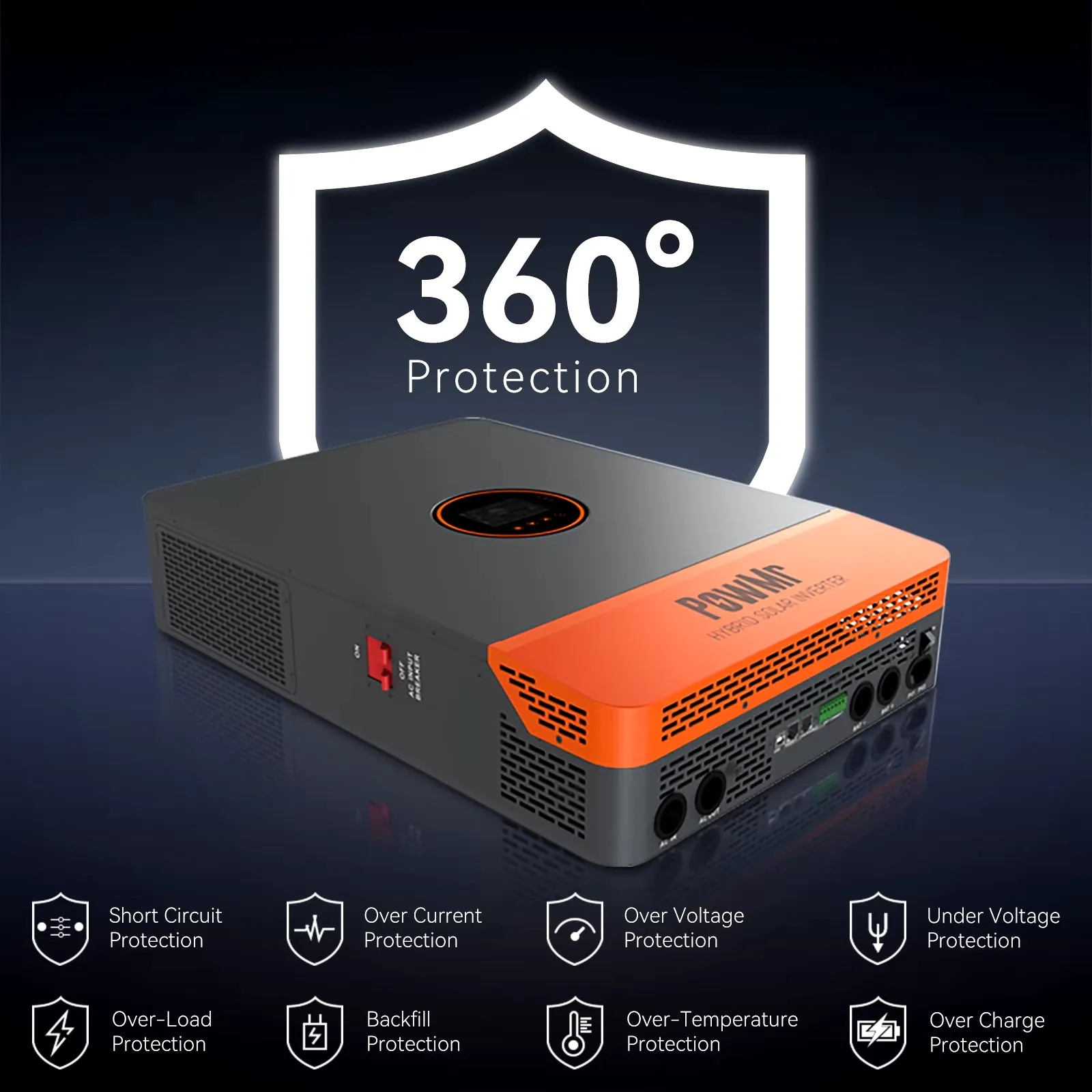

⚫ 360° protection with complete short circuit protection, over current protection, over under voltage protection, overload protection, backfill protection, etc.
⚫ Support CAN, USB, and RS485 communication.
Specification:
MODEL |
POW-SunSmart10K |
CAN BE SET |
INVERTER OUTPUT | ||
Rated Output Power |
10000W |
|
Max.Peak Power |
20000W |
|
Rated Output Voltage |
120/240Vac（splitphase/single phase） |
Yes |
Load Capacity of Motors |
6HP |
|
Rated AC Frequency |
50/60Hz |
Yes |
Waveform |
Pure Sine Wave |
|
Switch Time |
10ms（typical） |
|
Parallel Capacity |
/ |
|
Overload |
After triggering the overload protection the inverter will |
|
BATTERY | ||
Battery Type |
Li-ion/ Lead-Acid/User Defined |
Yes |
Rated Battery Voltage |
48Vdc |
|
Voltage Range |
40-60Vdc |
Yes |
Max.MPPT Charging Current |
200A |
Yes |
Max.Mains/Generator Charging Current |
120A |
Yes |
Max.Hybrid Charging Current |
200A |
Yes |
PV INPUT | ||
Quatity of MPPT Trackers |
2 |
|
Max.PV Array Power |
11000W |
|
Max.Input Current |
22/22A |
|
Max.Voltage of Open Circuit |
500Vdc |
|
MPPT Voltage Range |
125-425Vdc |
|
MAINS/ GENERA TORINPUT | ||
Input Voltage Range |
90-140Vac |
|
Frequency Range |
50/60Hz |
|
Bypass Overload Current |
63A |
|
EFFICIENCY | ||
MPPT Tracking Efficiency |
99.90% |
|
Max.Battery Inverter Efficiency |
92% |
|
GENERAL | ||

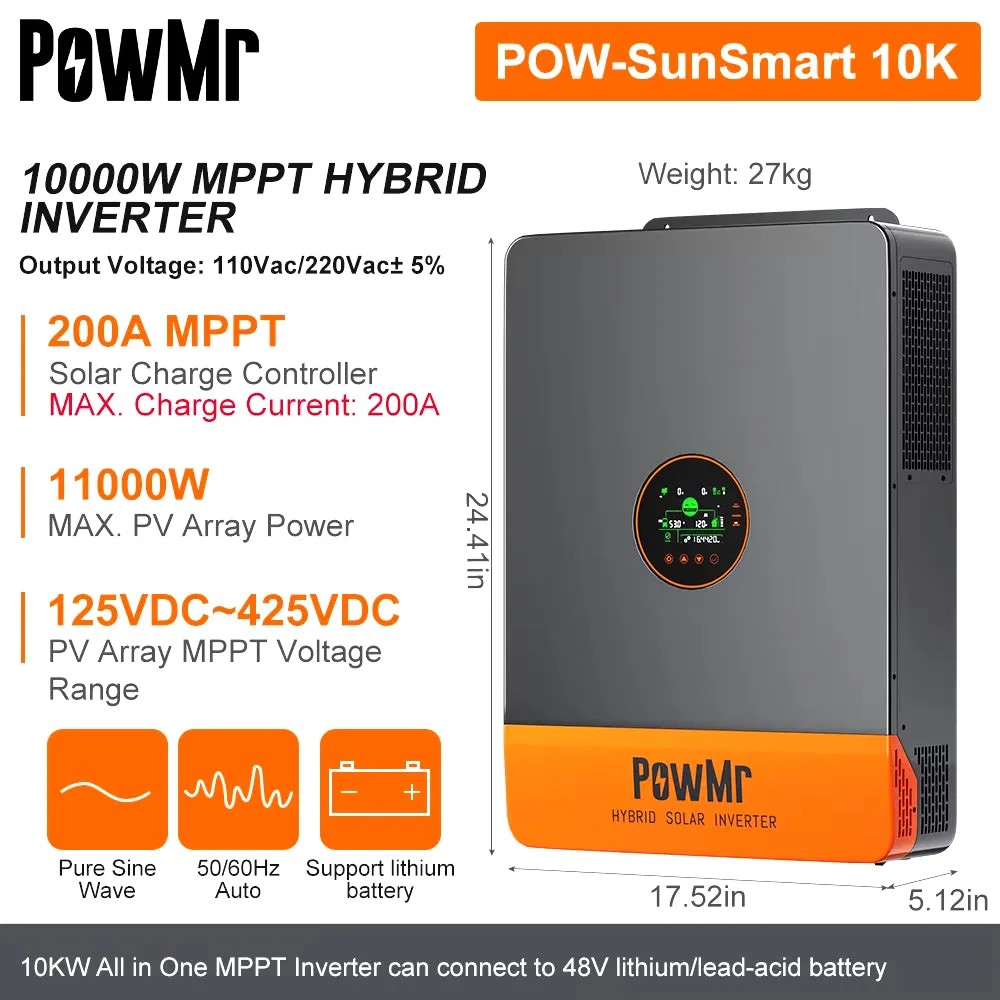

Dimensions |
620*445*130mm(2*1.5*0.4ft) |
|
Weight |
27kg(59.5lb) |
|
Protection Degree |
IP20，Indoor Only |
|
Operating Temperature Range |
-10~55℃,>45℃derated |
|
(14~131℉，>113℉derated) |
||
Noise |
<60dB |
|
Cooling Method |
Internal Fan |
|
Warranty |
2 Years |
|
COMMUNICATION | ||
Embedded Interfaces |
RS485/CAN/USB/ Dry contact |
Yes |
ExternalModules(Optional) |
Wi-Fi /GPRS |
Yes |
CERTIFICATION | ||
Safety |
IEC62109-1, IEC62109-2, UL1741 |
|
EMC |
EN61000-6-1,EN6 1000-6-3, FCC15 classB |
|
RoHS |
Yes |
Introduction:

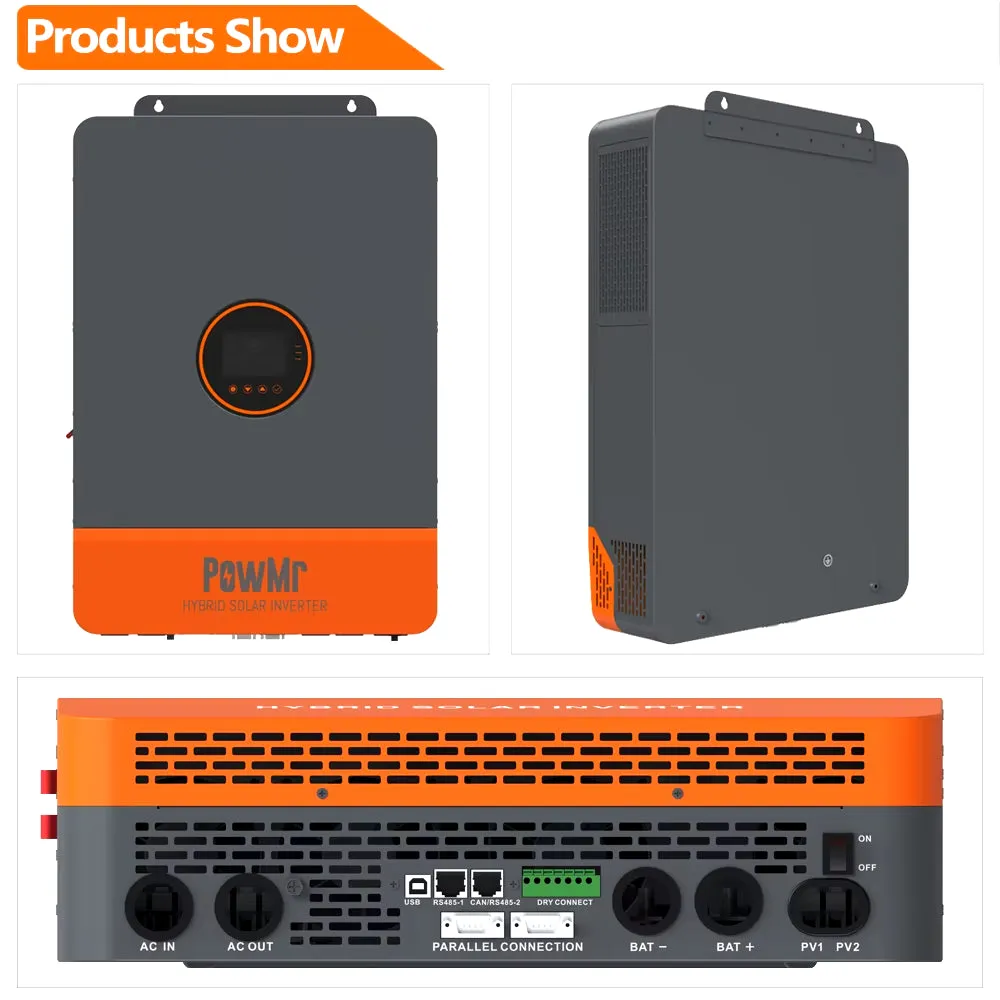

Photos:
