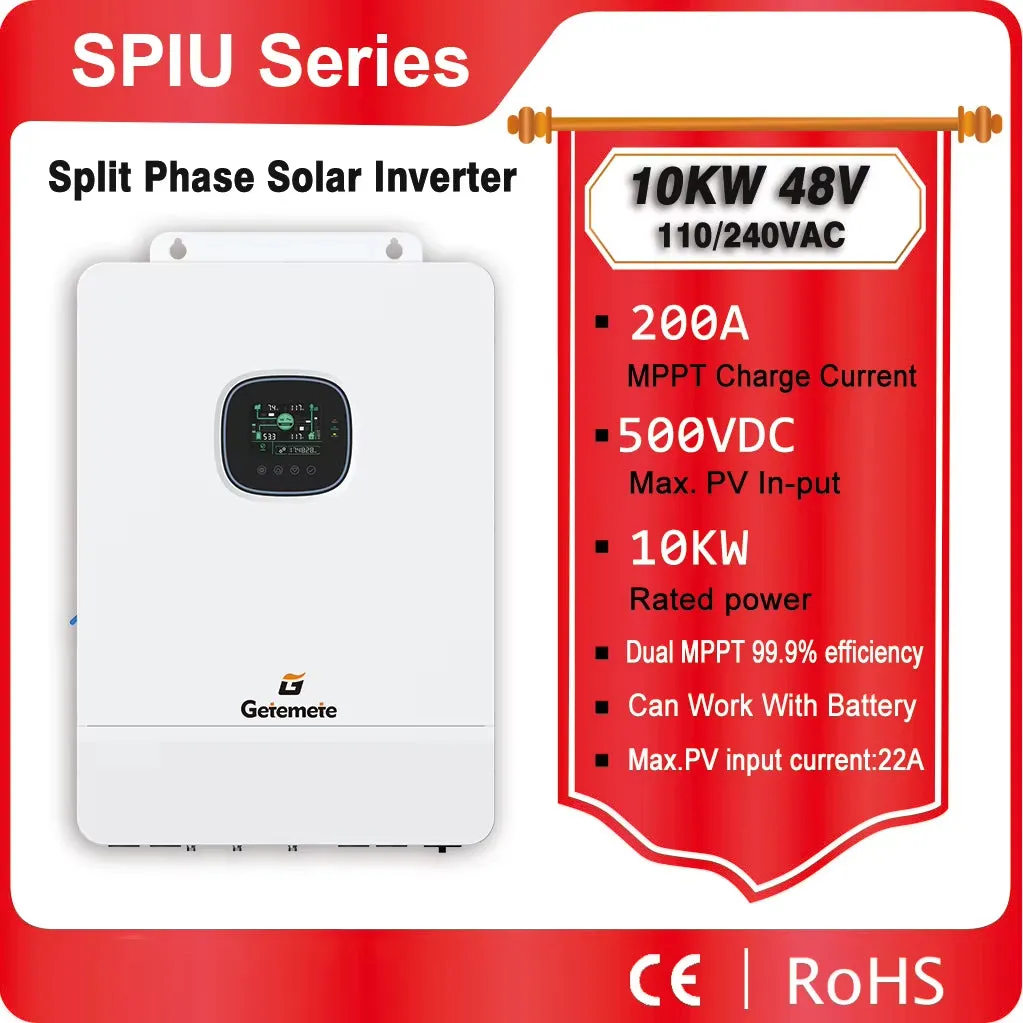

Getemete 10KW 48V 110/240VAC Max PV 500V Hybrid Solar Inverter Support Split-phase/single-phase Dual MPPT Max 22A Charge Current SPUI-10K
Note :
The battery capacity of the correct matching system is determined according to the specific usage requirements of the load and application scenarios, otherwise it will easily lead to insufficient battery capacity or excessive waste of power generation. For details, please refer to the manual recommendation or consult online customer service.
Introduction：
ASF series is a new type of solar energy storage inverter control inverter integrating solar energy storage & utility
charging and energy storage, AC sine wave output. It adopts DSP control and features high response speed, reliability, and industrial standard through an advanced control algorithm.
Features:
• Supports lead acid battery and li-ion battery connections.
• With a dual activation function when the li-ion battery is dormant; either mains/photovoltaic power supply
access can trigger the activation of the li-ion battery.
• Support split-phase and single-phase pure sine wave output.
• Supports four different voltage levels of 100Vac, 105Vac, 110Vac, and 120Vac per phase.
• Supports two solar inputs and simultaneous tracking of two solar maximum power charging/carrying capacity functions.
• Dual MPPT with 99.9% efficiency and maximum 22A current in a single circuit, perfectly adapted to high power modules.
• 4 charging modes are available: solar only, mains priority, solar priority, and mixed mains/PV charging.
• With the time-slot charging and discharging setting function, you can set the time period for cutting in/out of mains charging and switch the time period between battery discharging and mains bypass power supply mode.
• Energy saving mode function to reduce no-load energy losses.
• With two output modes of utility bypass and inverter output, with uninterrupted power supply function.
• LCD large screen dynamic flow diagram design, easy to understand the system data and operation status.
• 360° protection with complete short circuit protection, over current protection, over under voltage protection, overload protection, backfill protection, etc.
• Support CAN, USB, and RS485 communication.
Overview：
Sepecification：
MODEL |
SPIU-8K |
SPIU-10K |
Adjustable |
INVERTER OUTPUT | |||
Rated Output Power |
8,000W |
10,000W |
|
Max.Peak Power |
16,000W |
20,000W |
|
Rated Output Voltage |
120/240Vac（L1/L2/N/PE split phase） |
√ |
|
Load Capacity of Motors |
5HP |
6HP |
|
Rated AC Frequency |
50/60Hz |
√ |
|
Waveform |
Pure Sine Wave |
||
Switch Time |
10ms（typical） |
||
Parallel capacity |
/ |
||
BATTERY | |||
Battery Type |
Li-ion / Lead-Acid / User Defined |
√ |
|
Rated Battery Voltage |
48Vdc |
||
Voltage Range |
40-60Vdc |
√ |
|
Max.MPPT Charging Current |
200A |
√ |
|
Max.Mains/Generator Charging Current |
100A |
120A |
√ |
Max.Hybrid Charging Current |
180A |
200A |
√ |
PV INPUT |
|||
Num. of MPP Trackers |
2 |
||
Max.PV array power |
5500W 5500W |
||
Max.input current |
22A 22A |
||
Max.Voltage of Open Circuit |
500Vdc 500Vdc |
||
MPPT Voltage Range |
125-425Vdc 120~425Vdc |
||
MAINS / GENERATOR INPUT | |||
Input Voltage Range |
90-140Vac |
||
Frequency Range |
50/60Hz |
||
Bypass Overload Current |
63A |
||
EFFICIENCY | |||
MPPT Tracking Efficiency |
99.90% |
||
Max. Battery Inverter Efficiency |
92% |
||
GENERAL | |||
Dimensions |
620*435*130mm（2*1.4*0.4ft） |
||
Weight |
27k |
27kg |
|
Protection Degree |
IP20，Indoor Only |
||
Operating Temperature Range |
-15~55℃,>45℃ derated（5~131℉，>113℉ derated） |
||
Noise |
<60dB |
||
Cooling Method |
Internal Fan |
||
Warranty |
2 Years |
||
COMMUNICATION | |||
Embedded Interfaces |
RS485 / CAN / USB / Dry contact |
√ |
|
External Modules（Optional） |
Wi-Fi / GPRS |
√ |
|
CERTIFICATION | |||
Safety |
IEC62109-1, IEC62109-2,UL1741 |
||
EMC |
EN61000-6-1, EN61000-6-3, FCC 15 class B |
||
RoHS |
Yes |

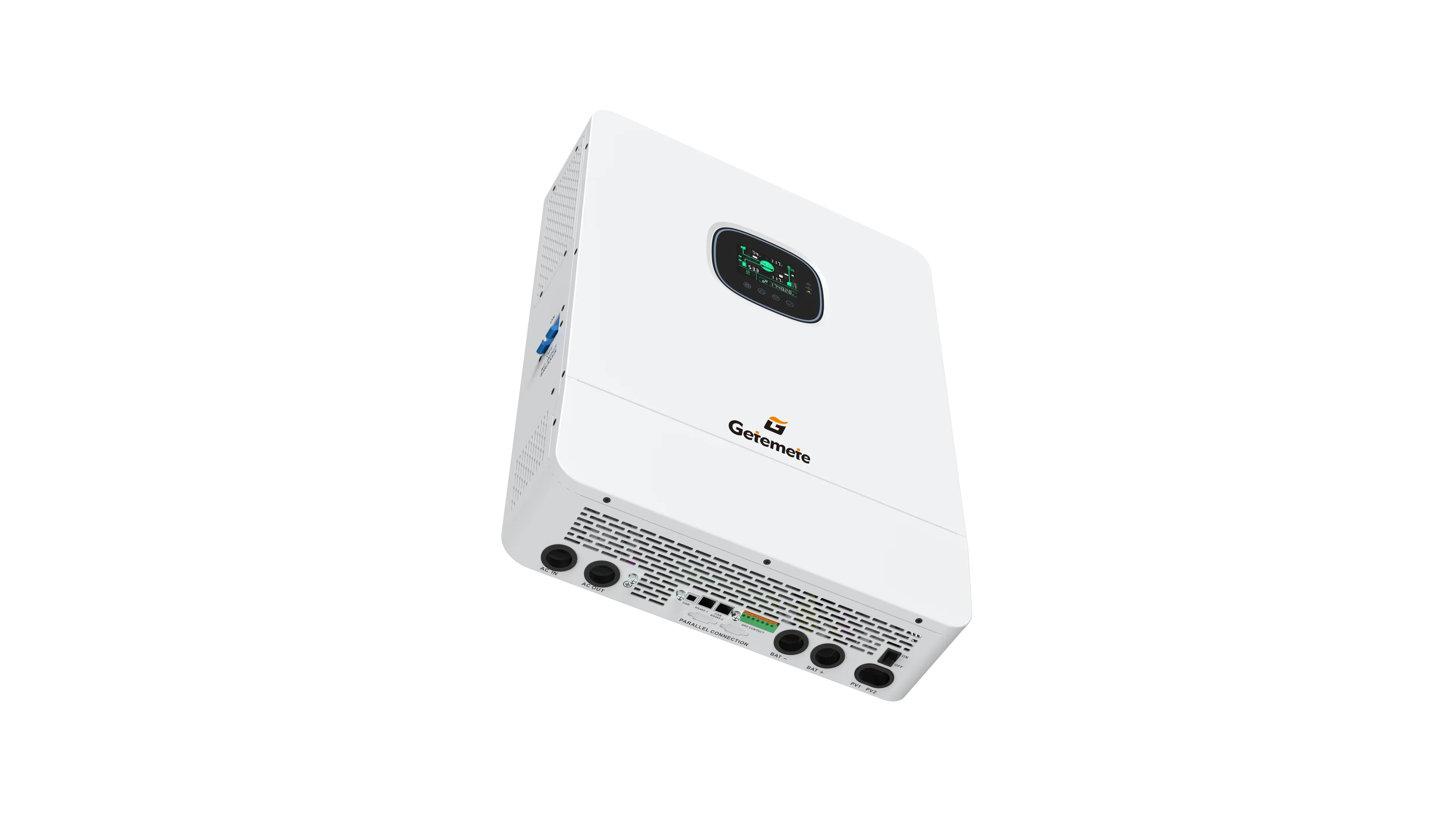

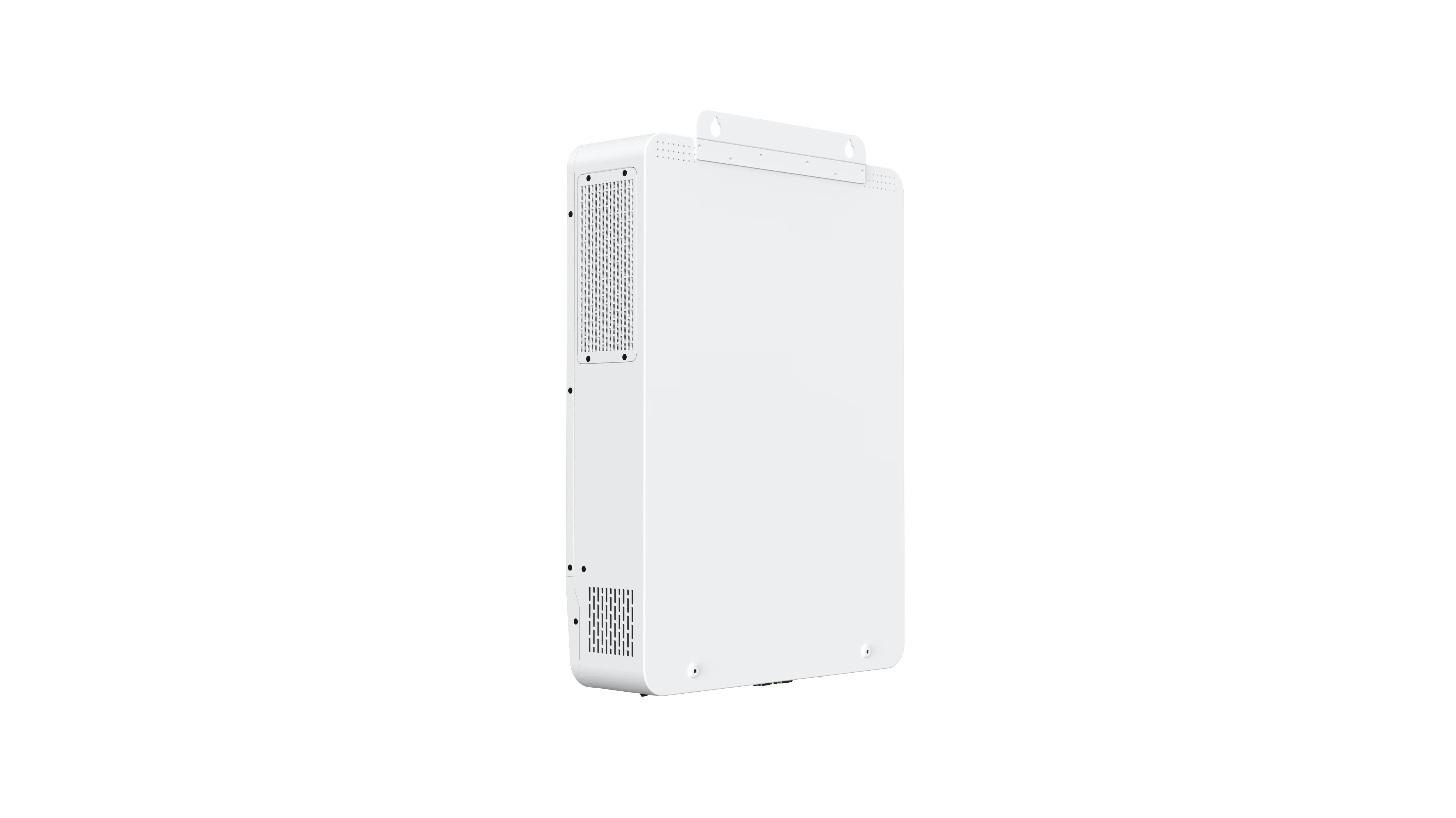

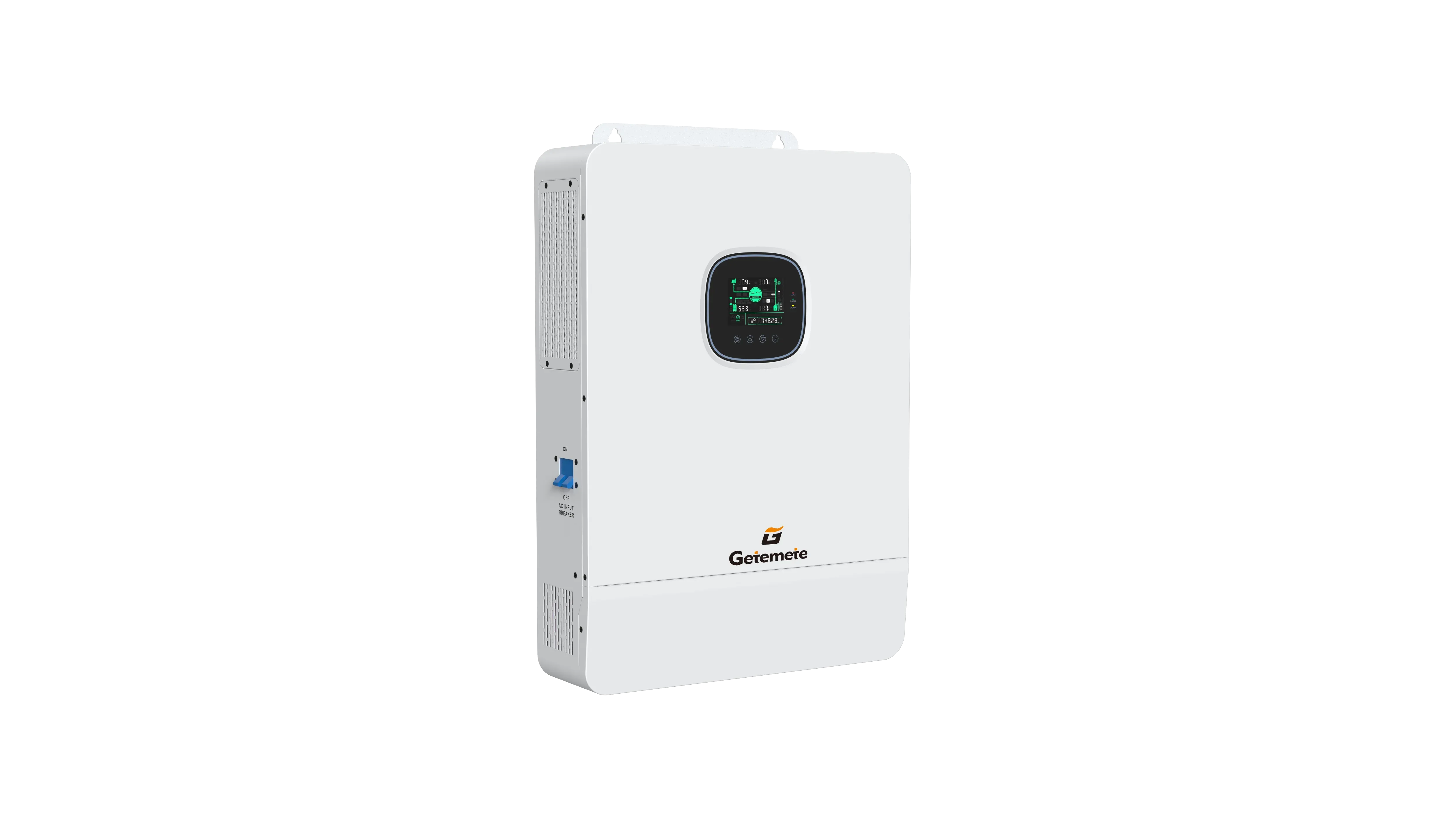

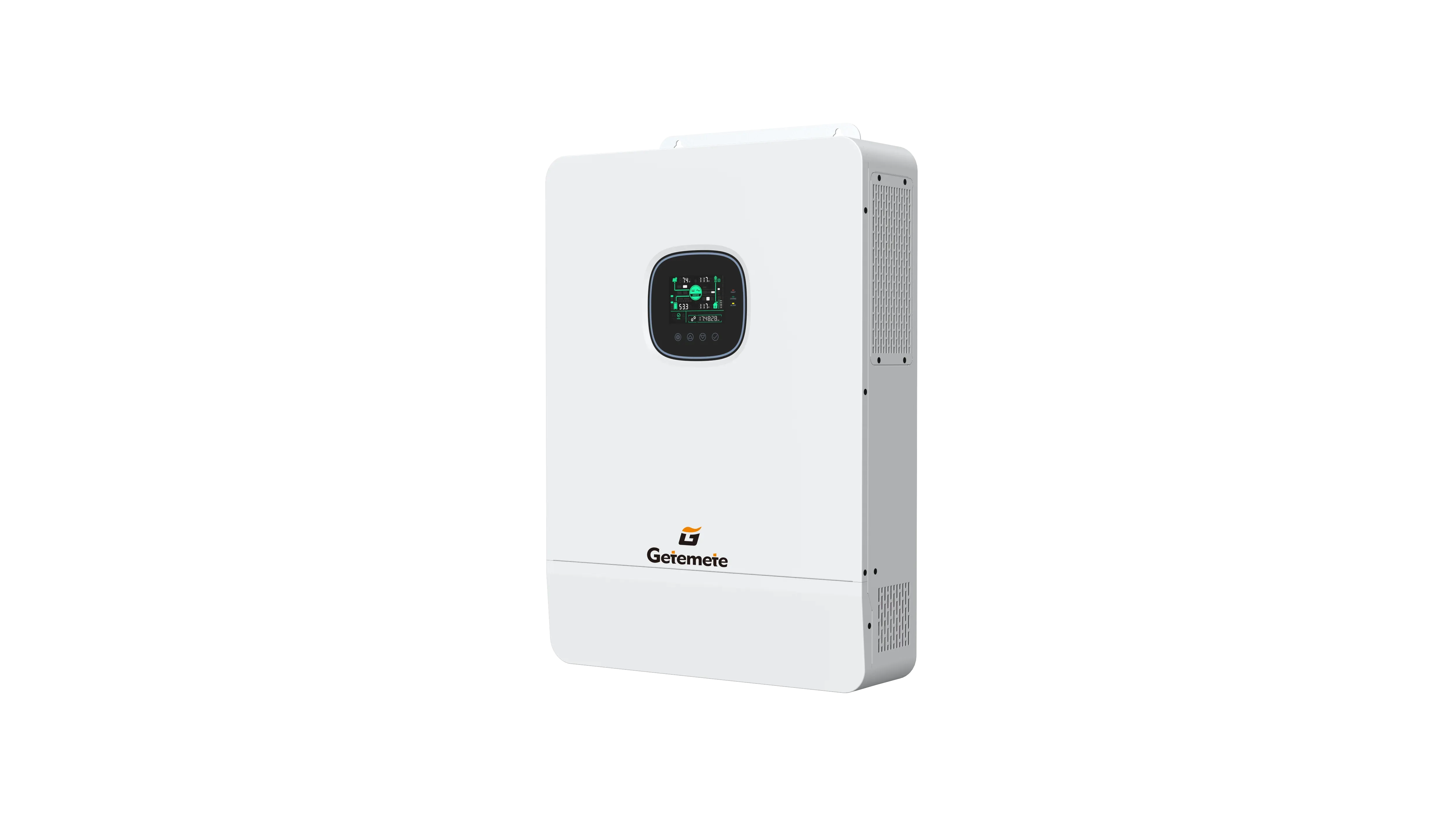

Item Pictures：
